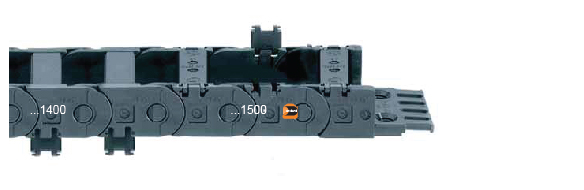

1400 - 1500
Small radii, high stability
e-chains® Series 1400 snap-open along inner radius
e-chains® Series 1500 snap-open along inner radius
SPECIFICATION
e-chains® snap-open along inner radius |
e-chains® snap-open along outer radius |
Bi(mm) |
Ba(mm) |
R Bending Radii(mm) |
1400(kg/m) |
1500(kg/m) |
1400. 015. R.0 |
1500. 015. R.01) |
15 |
28.5 |
|035|038|048|075|100|125|145|180| |
≈0.46 |
≈0.46 |
1400. 020. R.0 |
1500. 020. R.01) |
20 |
33.5 |
|035|038|048|075|100|125|145|180| |
≈0.47 |
≈0.47 |
1400. 025. R.0 |
1500. 025. R.01) |
25 |
38.5 |
|035|038|048|075|100|125|145|180| |
≈0.49 |
≈0.49 |
1400. 038. R.0 |
1500. 038. R.01) |
38 |
51.5 |
|035|038|048|075|100|125|145|180| |
≈0.53 |
≈0.53 |
1400. 050. R.0 |
1500. 050. R.01) |
50 |
63.5 |
|035|038|048|075|100|125|145|180| |
≈0.56 |
≈0.56 |
1400. 068. R.0 |
1500. 068. R.01) |
68 |
81.5 |
|035|038|048|075|100|125|145|180| |
≈0.63 |
≈0.63 |
1400. 080. R.0 |
1500. 080. R.01) |
80 |
93.5 |
|035|038|048|075|100|125|145|180| |
≈0.67 |
≈0.67 |
1400. 100. R.0 |
1500. 100. R.01) |
100 |
113.5 |
|035|038|048|075|100|125|145|180| |
≈0.74 |
≈0.74 |
1400. 125. R.0 |
1500. 125. R.01) |
125 |
138.5 |
|035|038|048|075|100|125|145|180| |
≈0.83 |
≈0.83 |
Supplement Part No. with required radius(R). Example: B15.025.038.0

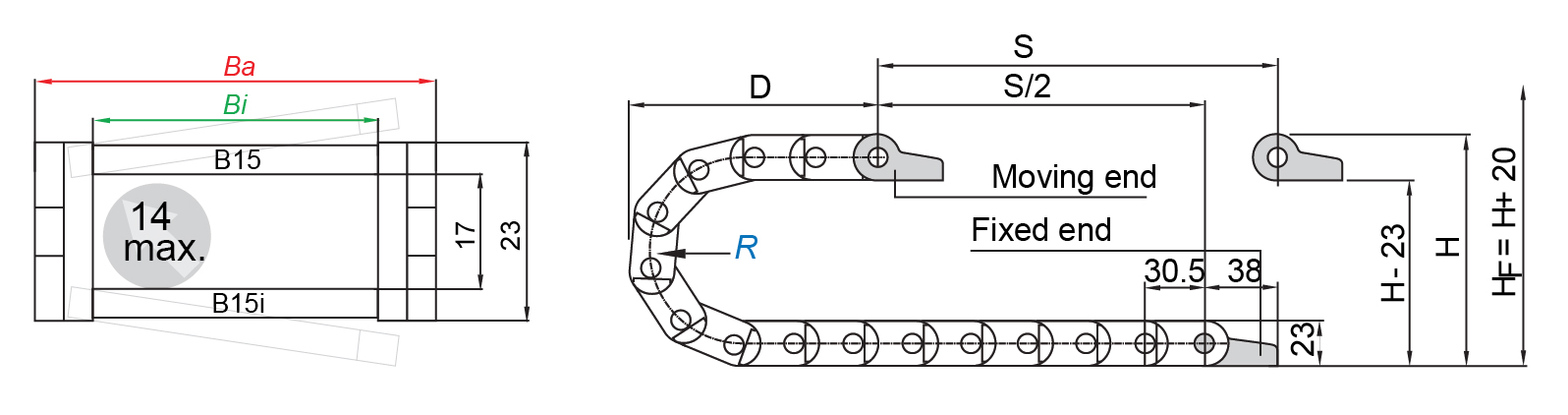

R |
035 |
038 |
048 |
075 |
100 |
125 |
145 |
180 |
H |
98 |
104 |
124 |
178 |
228 |
278 |
318 |
388 |
D |
99 |
102 |
112 |
139 |
164 |
189 |
209 |
244 |
K |
180 |
190 |
220 |
305 |
385 |
460 |
525 |
635 |
The required clearance height:
HF=H+20mm (with 0.5kg/m fill weight)
Inner Height |
Pitch |
Links/m |
Chain length |
21mm |
32.2mm/link |
30(1000mm) |
S/2+K |

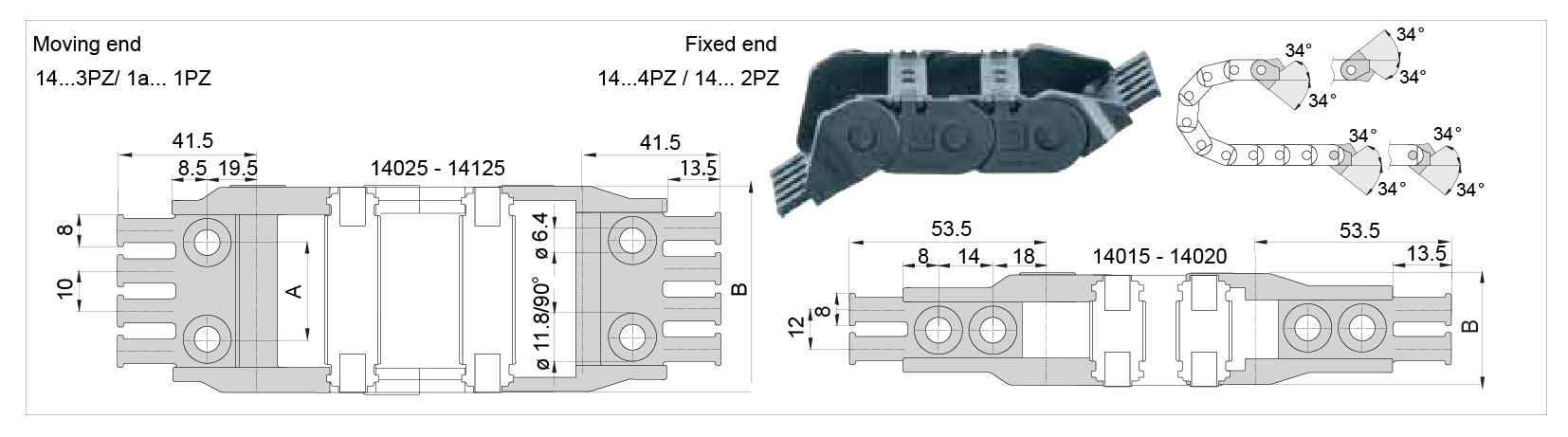

E2/000 e-Chains® 1400 ACCESSORIES
Mounting brackets, polymer one-piece | povoting | locking
Polymer pivoting | Recommended for unsupported and gliding applications | Standard
Polymer locking | Recommended for vertical hanging and standing applications
Width Index |
|
Part No. full set pivoting: with tiewrap plates |
Part No. full set locking: without tiewrap plates |
Dim. A (mm) |
Dim. B (mm) |
Number of teeth |

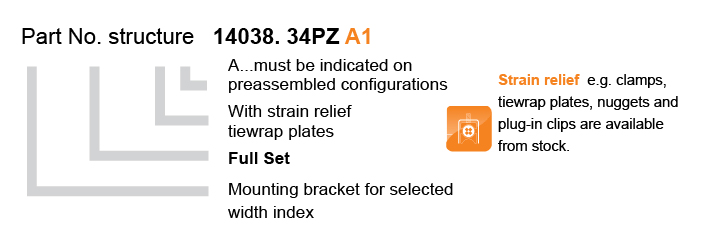

015. |
➤ |
14015.34PZ |
14015.12PZ |
- |
28.5 |
2 |
020. |
➤ |
14020.34PZ |
14020.12PZ |
- |
33.5 |
2 |
025. |
➤ |
14025.34PZ |
14025.12PZ |
13 |
38.5 |
2 |
038. |
➤ |
14038.34PZ |
14038.12PZ |
24 |
51.5 |
4 |
050. |
➤ |
14050.34PZ |
14050.12PZ |
36 |
63.5 |
5 |
068. |
➤ |
14068.34PZ |
14068.12PZ |
54 |
81.5 |
7 |
080. |
➤ |
14080.34PZ |
14080.12PZ |
66 |
93.5 |
8 |
100. |
➤ |
14100.34PZ |
14100.12PZ |
86 |
113.5 |
10 |
125. |
➤ |
14125.34PZ |
14125.12PZ |
111 |
138.5 |
13 |

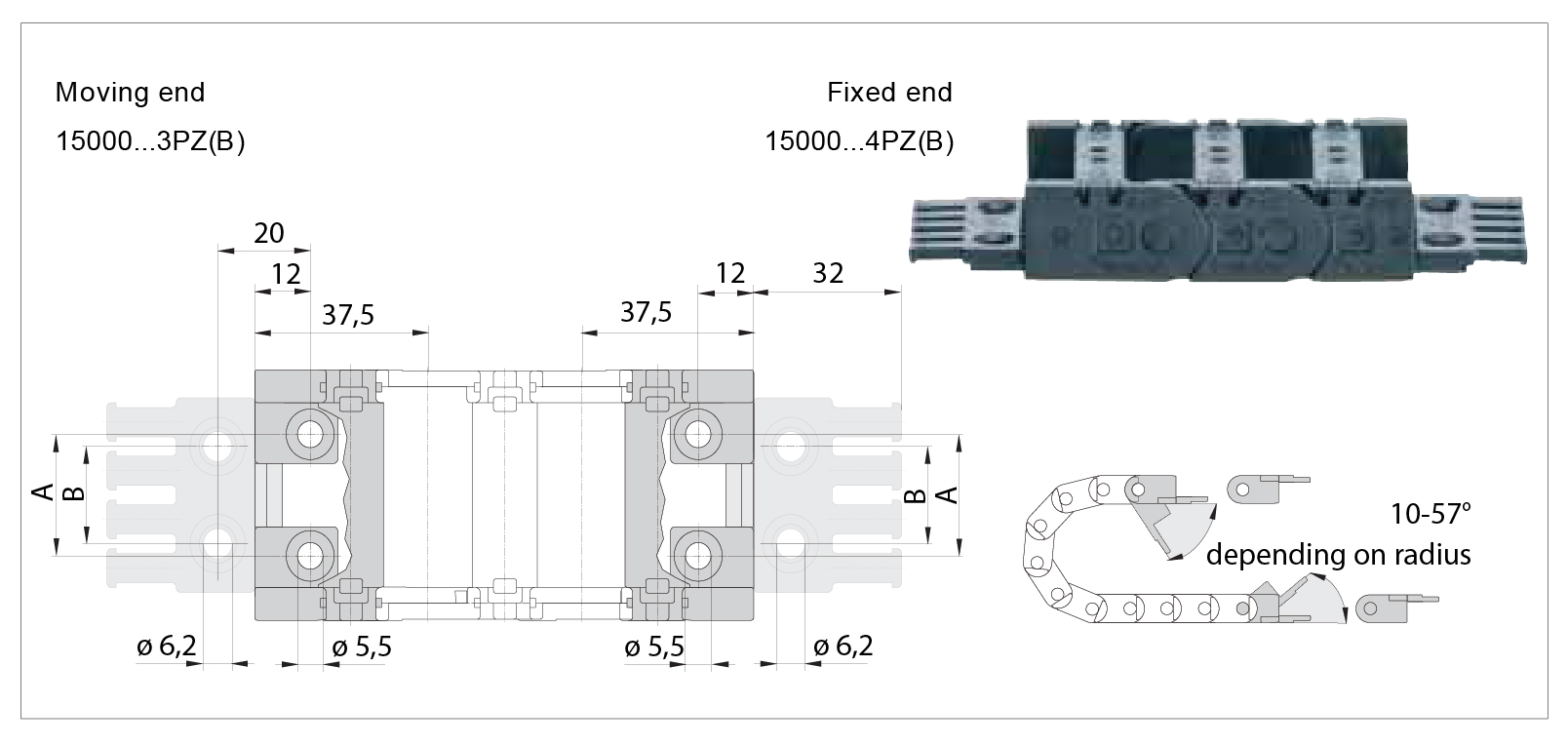

E2/000 e-Chains® 1500 ACCESSORIES
Mounting brackets, polymer one-piece | povoting | locking
Polymer pivoting | Recommended for unsupported and gliding applications
For tight installation conditions
Width Index |
|
Part No. full set pivoting: with tiewrap plates |
Part No. full set pivoting: without tiewrap plates |
Dim. A (mm) |
Dim. B (mm) |
Number of teeth |
015. |
➤ |
- |
- |
- |
- |
- |
020. |
➤ |
- |
- |
- |
- |
- |
025. |
➤ |

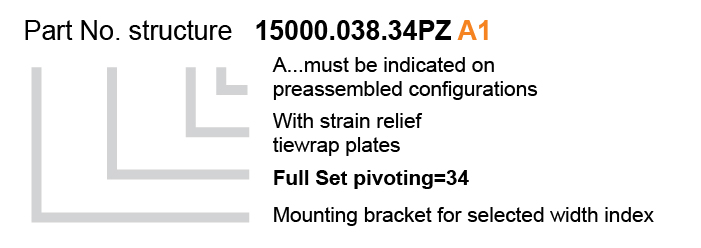

15000.025.34PZB |
15000.025.34PZB |
12 |
15 |
3 |
038. |
➤ |
15000.038.34PZB |
15000.038.34PZB |
25 |
20 |
4 |
050. |
➤ |
15000.050.34PZB |
15000.050.34PZB |
37 |
30 |
5 |
068. |
➤ |
15000.068.34PZB |
15000.068.34PZB |
55 |
40 |
6 |
080. |
➤ |
15000.080.34PZB |
15000.080.34PZB |
67 |
60 |
8 |
100. |
➤ |
15000.100.34PZB |
15000.100.34PZB |
87 |
80 |
10 |
125. |
➤ |
15000.125.34PZB* |
15000.125.34PZB* |
112 |
100 |
12 |
*Tiewrap plate (consists of 2x2050.ZB) does not snap on but needs to be bolted down separately
Note: Mounting brackets not to assemble at the cable end
