Cable Chain E2 Micro Series E2.10

Mechanical Components » Cable Chains

E2.10 E2i.10 E2C.10

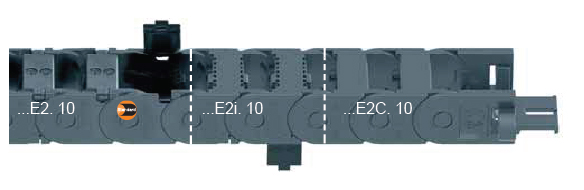

Series E2.10 Snap-open along outer radius from both sides
Series R2i.10 Snap-open along inner radius from both sides
Series E2C.10 One-piece, non-snap e-chain

Specifications ➤
Accessories ➤

SPECIFICATION

Snap-open along outer radius	Snap-open along inner radius	One-piece, non snap-open	Bi(mm)	Ba(mm)	R Bending Radii(mm)	E2.10(kg/m)	E2i.10(kg/m)	E2C.10(kg/m)
E2.10. 06. R.0	E2i.10. 06. R.0	E2C.10. 06. R.0	06	13.4	\|018\|028\|038\|	≈0.13	≈0.13	≈0.14
E2.10. 10. R.0	E2i.10. 10. R.0	E2C.10. 10. R.0	10	17.4	\|018\|028\|038\|	≈0.14	≈0.14	≈0.14
E2.10. 16. R.0	E2i.10. 16. R.0	E2C.10. 16. R.0	16	23.4	\|018\|028\|038\|	≈0.16	≈0.16	≈0.16
E2.10. 20. R.0	E2i.10. 20. R.0	E2C.10. 20. R.0	20	27.4	\|018\|028\|038\|	≈0.17	≈0.17	≈0.17
E2.10. 30. R.0	E2i.10. 30. R.0	E2C.10. 30. R.0	30	37.4	\|018\|028\|038\|	≈0.19	≈0.19	≈0.20
E2.10. 40. R.0	E2i.10. 40. R.0	E2C.10. 40. R.0	40	47.4	\|018\|028\|038\|	≈0.22	≈0.22	≈0.23
E2.10. 50. R.0	E2i.10. 50. R.0	E2C.10. 50. R.0	50	57.4	\|018\|028\|038\|	≈0.25	≈0.25	≈0.25

^{Supplement Part No. with required radius(R). Example: E2.10.20.038.0}

R	018	028	038
H	51	71	91
D	56	66	76
K	100	130	160

^{The required clearance height:

H_F=H+10mm (with 0.2kg/m fill weight)}

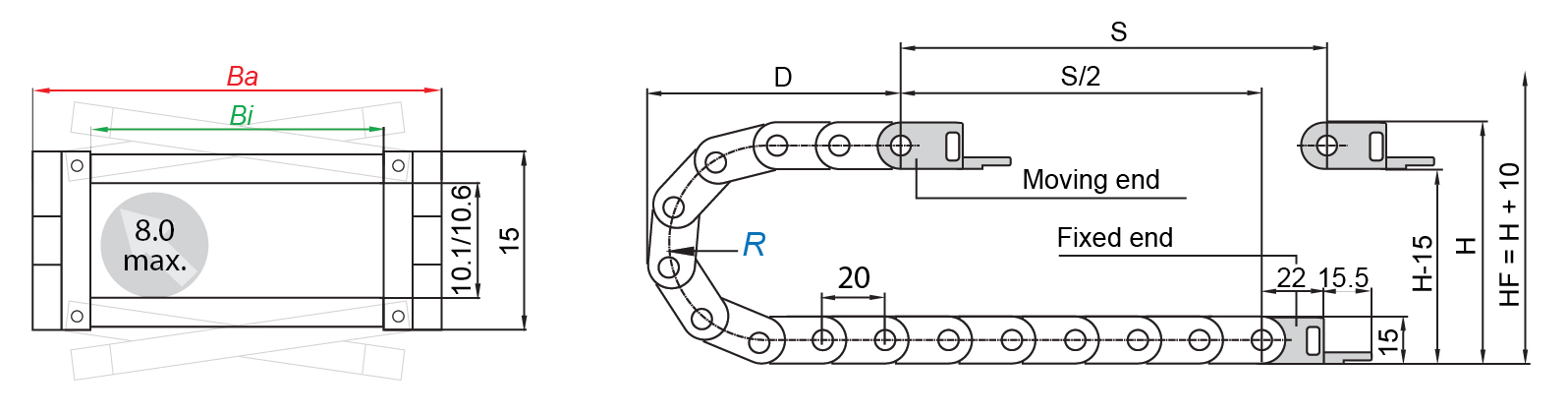

Inner Height	E2.10	E2i.10	E2C.10	Pitch	Links/m	Chain length
Inner Height	10.1mm	10.1mm	10.6mm	20mm/link	50(1000mm)	^S/₂+K

ACCESSORIES

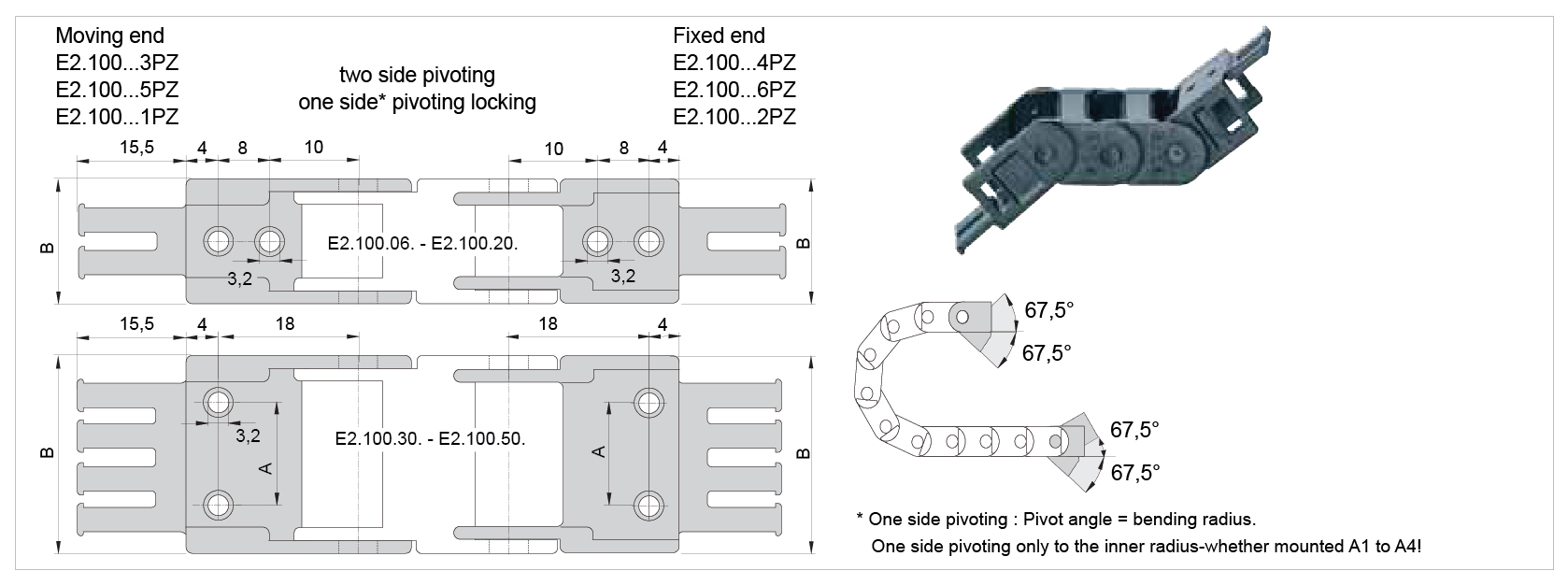

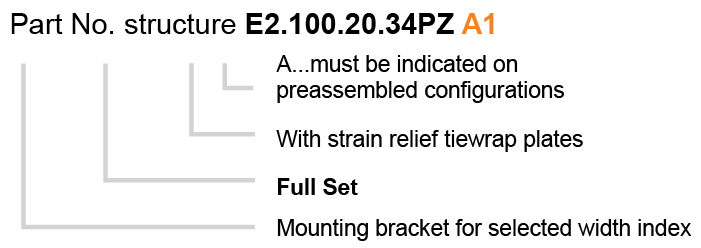

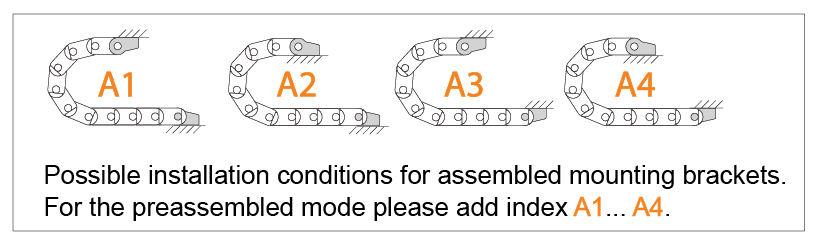

Mounting brackets, polymer one-piece | one side* or two side povoting | locking
