SMALL MICRO-PHOTOSENSOR SUN-X PM-L24

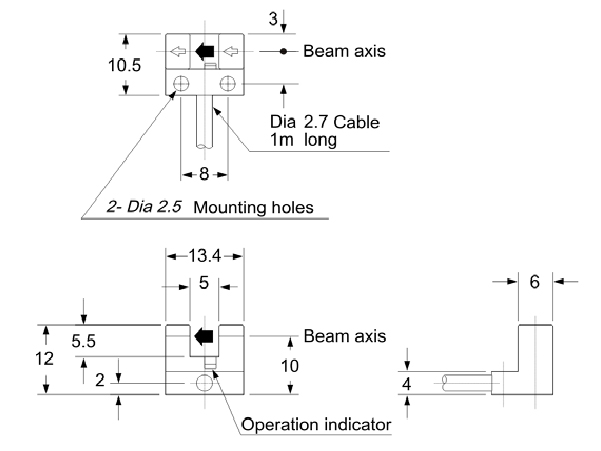

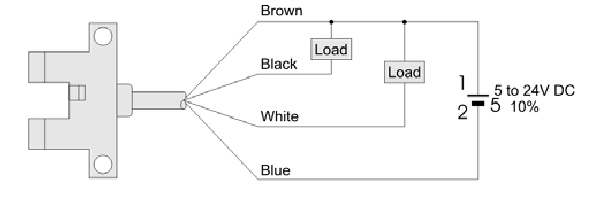

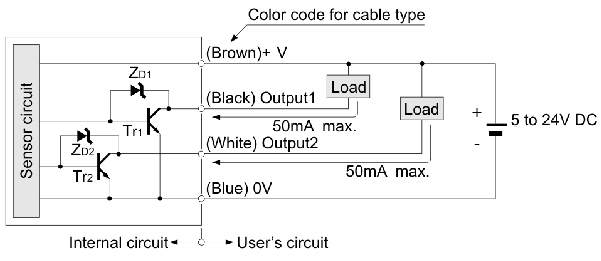

OUTPUT CIRCUIT DIAGRAM
PM-L24 NPN Output
Symbol:
ZD1, ZD2: Surge absorption zener diode
Tr1, Tr2: NPN output transistor
| Color code | Output operation | |
|---|---|---|
| Output 1 | Black | Light-ON |
| Output 2 | White | Dark-ON |
