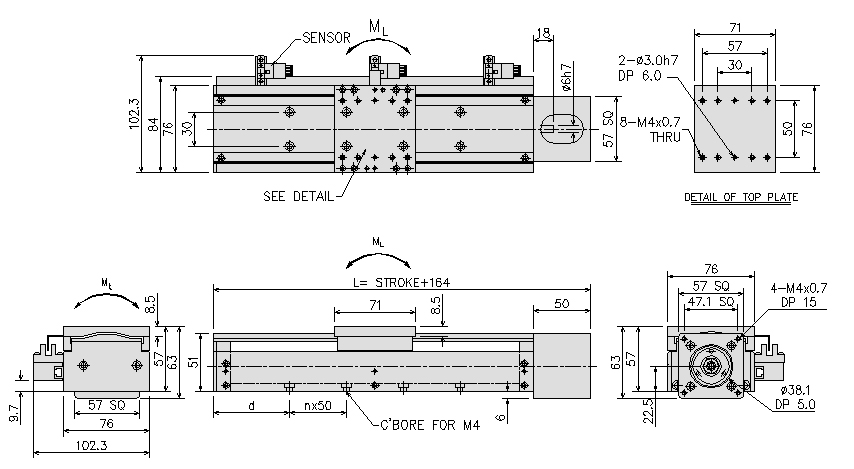

UIA076R9DC
Linear Actuators » Ball Screw Drive | Standard Type
| Stroke Range | 050~600 mm |
|---|---|
| Ball Screw | Ø12x5 / Ø12x10 mm |
| Ball Rail | 9mm |
| Motor Mounting | M16, M23 or M60 |
| Repeatability | ±5µm |
| Accuracy | 20µm/ 300mm |
| Break-away Torque | 0.05Nm |
| Recommend Max. Speed | 50rps |
Allowable Overhang Maximum Payload |
Horizontal: 30kg Vertical: 10kg |
OVERHANG DETAILS
Horizontal Installation
| A(mm) | B(mm) | C(mm) | |
|---|---|---|---|
| 12kg | 180 | 180 | 100 |
| 25kg | 90 | 90 | 50 |
Wall Installation
| A(mm) | B(mm) | C(mm) | |
|---|---|---|---|
| 8kg | 140 | 240 | 240 |
| 15kg | 70 | 120 | 120 |
Vertical Installation
| A(mm) | C(mm) | |
|---|---|---|
| 4kg | 360 | 360 |
| 8kg | 180 | 180 |
Dynamic Moment
| MX | MY | MZ |
|---|---|---|
| 80Nm | 90Nm | 90Nm |
